2026 Canyon Grail CF 8 1by Road Bike
Your shopping cart is empty!
Product Description

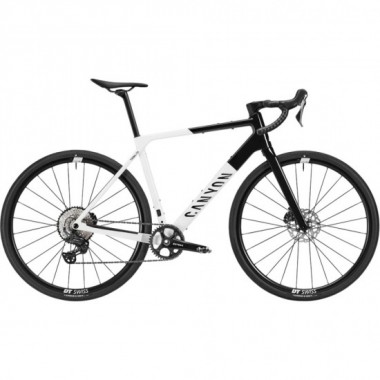

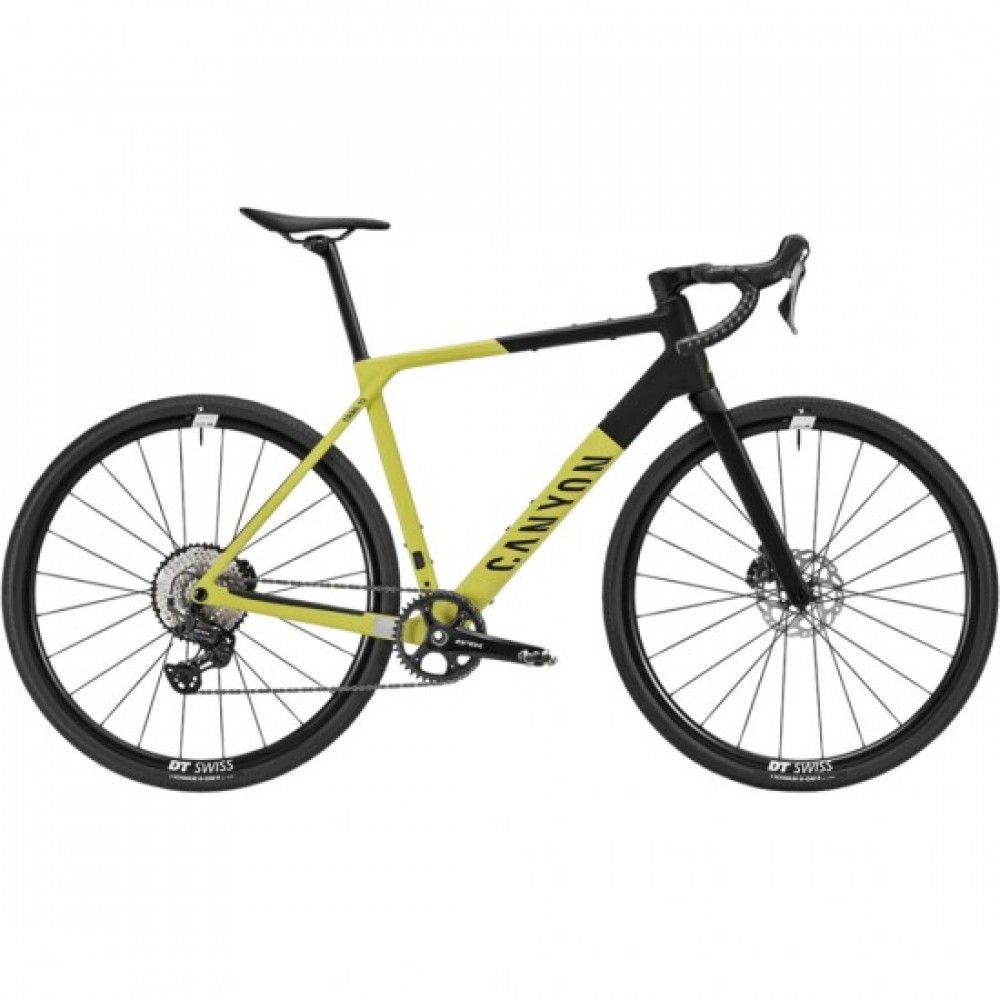

2026 Canyon Grail CF 8 1by Road Bike
Key features
Ergonomic evolution
For long days on gravel roads your contact points have to be on point, and the new Double Drop Bar delivers the perfect mix of ergonomic and aggressive riding positions thanks to in-depth testing and collaboration with our pro riders. The aero-optimised bar is narrower for a more aerodynamic position, and it's easy to travel with thanks to semi-internal cable routing.
Loaded and locked
The Canyon LOAD FidLock QuickLoader bag was made specially for the Grail and can be easily attached and removed using a special magnetic clip system. The bag fits seamlessly into the frame and even improves aerodynamics by 1.5 watts in the wind tunnel.
Fine tune your fit
The Grail's carbon seatpost now features independent saddle setback and tilt adjustment, meaning you can fine tune your position to get your fit and comfort just right.
Clean and tidy front end
Integrated cables provide a clean aesthetic and an aero advantage. They also make mounting a handlebar bag easy and rattle-free.
SPECIFICATION
| FRAME | Canyon Grail CF SLX Latest-generation Grail carbon gravel race bike with more capable geometry, aero tube forms, top tube mounts and strapless bag compatibility. Axle dimension: 12x142 mm Tyre clearance: 42 mm Material: Carbon (CF) Weight: 1,219 g |
|---|---|
| Fork | Canyon FK0117 CF Disc Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage. Axle dimension: 12x100 mm Fork steer tube diameter: 1 1/8" Tyre clearance: 42 mm Material: Carbon (CF) Weight: 462 g |
| Rear Derailleur | Shimano GRX RD-RX822 12s Cage length: medium Weight: 290 g |
| Cassette | Shimano SLX CS-M7100 Number of sprockets: 12 Range: 10-45 |
| Crank | Shimano GRX FC-RX820 Number of chainrings: 1 |
| Bottom bracket | Shimano Pressfit BB-RS500 Bottom bracket standard: PF 86 Weight: 81 g |
| Chain | Shimano CN-M7100 12s |
| Shift-/ Brake Lever | Shimano GRX BL-RX820 Number of pistons: 2 Weight: 420 g |
| Shift-/ Brake Lever | Shimano GRX BL-RX820 Number of pistons: 2 Weight: 156 g |
| Brake Rotor | Shimano SM-RT70 Size: 160 mm Weight: 147 g |
| Front Wheel | DT Swiss G1800 Spline Axle dimension: 12x100 mm Rotor mount: Center Lock Rim height: 25 mm Inner width: 24 mm Rim material: Aluminium Weight: 880 g |
| Rear Wheel | DT Swiss G1800 Spline Axle dimension: 12x142 mm Rotor mount: Center Lock Rim height: 25 mm Inner width: 24 mm Rim material: Aluminium Weight: 975 g |
| Tyre | Schwalbe G-One R Performance Width: 40 mm Weight: 485 g |
| Thru Axle | Canyon Through Axle Axle dimension: 12x100 mm Material: Aluminium (AL) |
| Thru Axle | DT Swiss Through Axle Axle dimension: 12x142 mm Material: Aluminium (AL) |
| Cockpit | Canyon Cockpit CP0045 One-piece carbon cockpit with specialist gravel ergonomics and design, and versatile Gear Groove interface for mounting a range of accessories. 16° flare on at drops, 5° backsweep on tops. Material: Carbon (CF) Weight: 321 g |
| Handlebar Tape | Canyon Ergospeed Gel Grippy, durable bar tape with a premium, high-quality, comfortable feel. Color: black |
| Saddle | Vento Argo X5 Width: 140 mm Gender: Unisex Weight: 247 g |
| Seatpost | Canyon SP0096-01 Compliant, lightweight Canyon-engineered carbon seatpost with vibration-absorbing, comfort-boosting design. Setback: 10 mm Material: Carbon (CF) Weight: 173 g |
| Seat Clamp | Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails |
| Seat Clamp | Spring |
| Accessories | |
| Pedals | None included |
| Manuals and Accessories | Canyon Organza Bag |
| Manuals and Accessories | Canyon Assembly Paste |
| Manuals and Accessories | Canyon Torque Wrench |
| Manuals and Accessories | Quick Start Guide |
