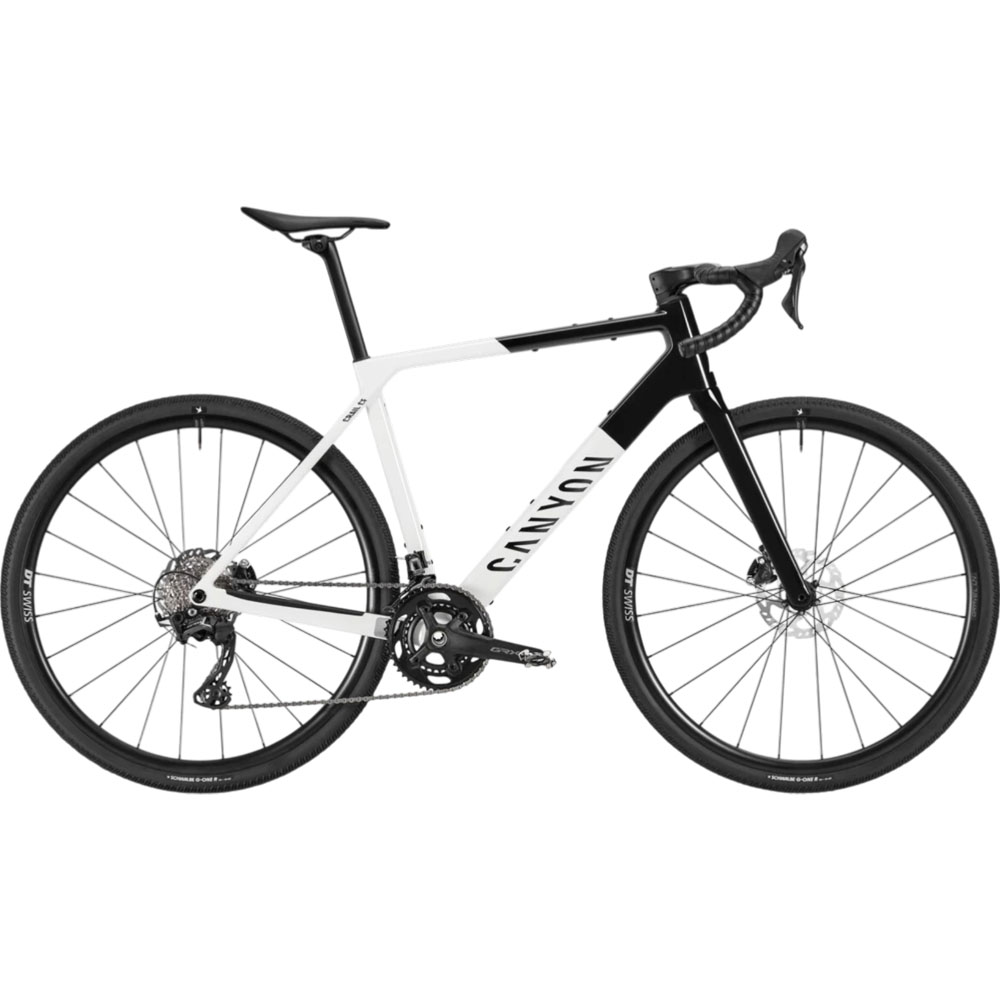

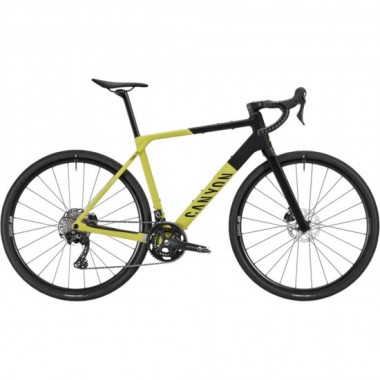

2026 Canyon Grail CF SL 7 Road Bike

2026 Canyon Grail CF SL 7 Road Bike

Key features

Ergonomic evolution
For long days on gravel roads your contact points have to be on point, and the new Double Drop Bar delivers the perfect mix of ergonomic and aggressive riding positions thanks to in-depth testing and collaboration with our pro riders. The aero-optimised bar is narrower for a more aerodynamic position, and it's easy to travel with thanks to semi-internal cable routing.

Loaded and locked
The Canyon LOAD FidLock QuickLoader bag was made specially for the Grail and can be easily attached and removed using a special magnetic clip system. The bag fits seamlessly into the frame and even improves aerodynamics by 1.5 watts in the wind tunnel.

Fine tune your fit
The Grail's carbon seatpost now features independent saddle setback and tilt adjustment, meaning you can fine tune your position to get your fit and comfort just right.

High-grade carbon layup
The CF combines the cutting-edge innovations of the SLX and CFR platforms with a carbon layup that strikes the ideal balance between durability and value. By using specially selected fibres, the carbon layup sets the benchmark in terms of toughness.

Clean and tidy front end
Integrated cables provide a clean aesthetic and an aero advantage. They also make mounting a handlebar bag easy and rattle-free.

SPECIFICATION

FRAME	Canyon Grail CF Latest-generation Grail carbon gravel race bike with more capable geometry, aero tube forms, top tube mounts and strapless bag compatibility. Axle dimension: 12x142 mm Tyre clearance: 42 mm Material: Carbon (CF) Weight: 2.73 lbs
Fork	Canyon FK0117 CF Disc Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage. Axle dimension: 12x100 mm Fork steer tube diameter: 1 1/8" Tyre clearance: 42 mm Material: Carbon (CF) Weight: 1.04 lbs
Rear Derailleur	Shimano GRX RD-RX820 12s Weight: 0.60 lbs
Front Derailleur	Shimano GRX FD-RX820 Weight: 0.21 lbs
Cassette	Shimano 105 R7101 11-34 12s Number of sprockets: 12 Range: 11-34
Crank	Shimano GRX FC-RX610 Number of chainrings: 2
Bottom bracket	Shimano Pressfit BB-RS500 Bottom bracket standard: PF 86 Weight: 0.18 lbs
Chain	Shimano Deore M6100
Shift-/ Brake Lever	Shimano GRX BL-RX610 Number of pistons: 2 Weight: 1.09 lbs
Shift-/ Brake Lever	Shimano GRX BL-RX610 Number of pistons: 2 Weight: 1.08 lbs
Shift-/ Brake Lever	Shift brake lever RX610
Brake Rotor	Shimano SM-RT70 Size: 160 mm Weight: 0.32 lbs
Front Wheel	DT Swiss Performance LN Axle dimension: 12x100 mm Rotor mount: Center Lock Rim height: 25 mm Inner width: 24 mm Rim material: Aluminium Weight: 2.09 lbs
Rear Wheel	DT Swiss Gravel LN Axle dimension: 12x142 mm Rotor mount: Center Lock Rim height: 25 mm Free hub: Shimano Inner width: 24 mm Rim material: Aluminium Weight: 2.52 lbs
Tyre	Schwalbe G-One R Performance Width: 40 mm Weight: 1.07 lbs
Thru Axle	DT Swiss Front Thru Axle Axle dimension: 12x100 mm Material: Aluminium (AL)
Thru Axle	DT Swiss Through Axle Axle dimension: 12x142 mm Material: Aluminium (AL)
Cockpit	Canyon Cockpit CP0045 One-piece carbon cockpit with specialist gravel ergonomics and design. 16° flare on at drops, 5° backsweep on tops. Material: Carbon (CF) Weight: 0.71 lbs
Handlebar Tape	Canyon Ergospeed Gel Grippy, durable bar tape with a premium, high-quality, comfortable feel. Color: black
Saddle	Vento Argo X5 Width: 140 mm Gender: Unisex Weight: 0.54 lbs
Seatpost	Canyon SP0096-01 Compliant, lightweight Canyon-engineered carbon seatpost with vibration-absorbing, comfort-boosting design. Setback: 10 mm Material: Carbon (CF) Weight: 0.38 lbs
Seat Clamp	Canyon EP2353-01
Seat Clamp	Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails
Seat Clamp	Spring
	Accessories
Pedals	None included
Manuals and Accessories	Canyon Organza Bag
Manuals and Accessories	Canyon Assembly Paste
Manuals and Accessories	Canyon Torque Wrench
Manuals and Accessories	Quick Start Guide
